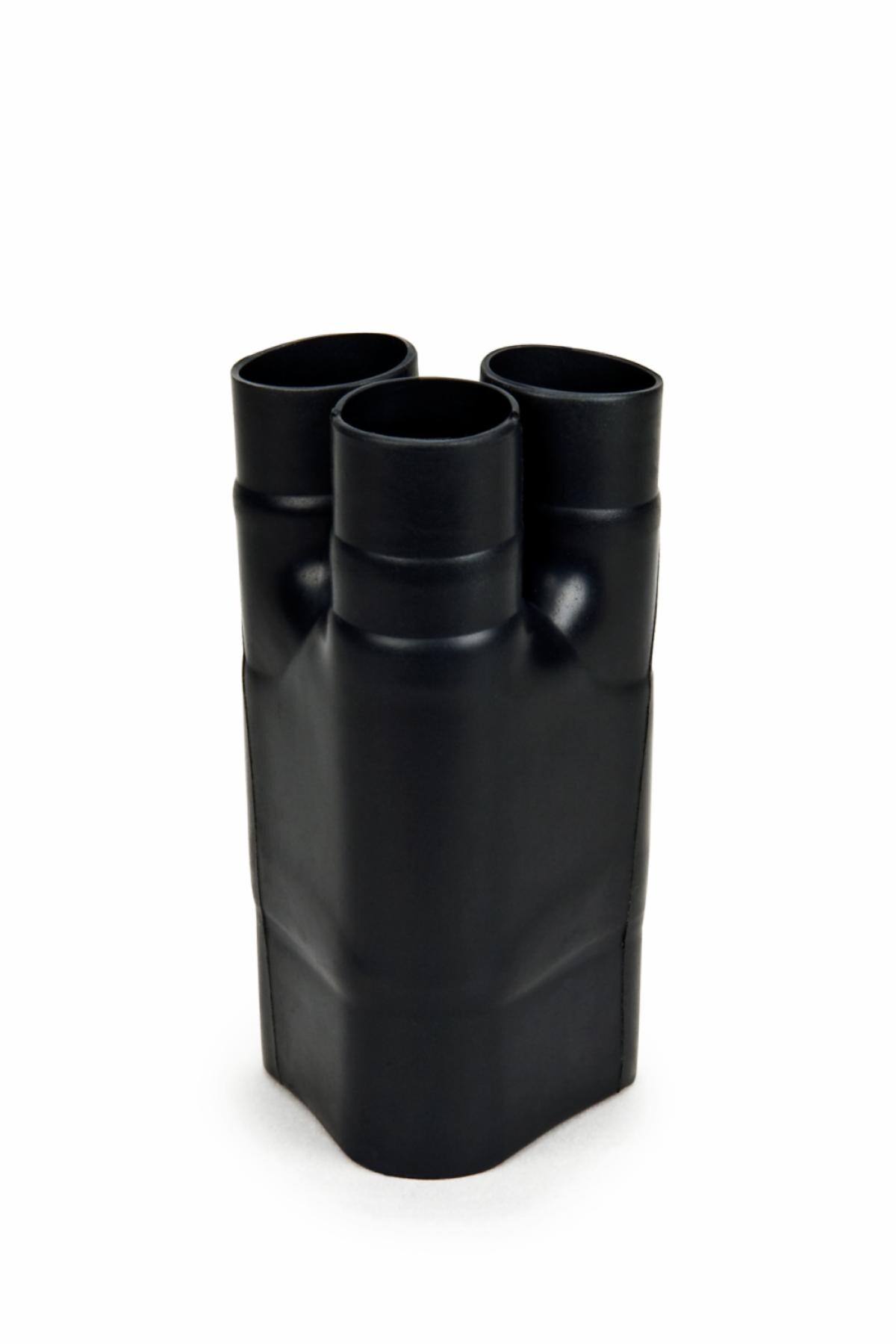

3M™ Heat Shrinkable Heavy Duty Cable Breakout Boot, HDBB-345-1-250, black, 3-way outlet
- 3M ID 7000140726
- UPC 00054007587941
Details
Highlights
- Excellent electrical and mechanical protection
- Flame retardant
- Adhesive lined
- Meets MIL-I-81765-1 requirements
- RoHS 2011/65/EU Compliant
3M™ Heat Shrinkable Cable Breakout Boots are designed to help provide strain relief and environmental/mechanical protection for breakouts in multi-conductor armoured or sheathed cables.
3M™ Heat Shrinkable Cable Breakout Boots are designed for dependable insulating and sealing of cable breakouts in multi-conductor armoured or sheathed cables and conduit ends. They are made from flame retardant, cross-linked polyolefin and meet material requirements of MIL-I-81765-1. The boots help provide excellent electrical and mechanical protection and are supplied with an internal coating of adhesive for reliable environmental sealing.
Suggested applications
- Insulating and sealing of cable breakouts
- Strain relief
- Mechanical protection
Typical Properties
| Brands | 3M™ |
| Cable End Expanded | 4.9 in |
| Cable End Recovered | 2.32 in |
| Cable Insulation Outside Diameter Range | 0.87-1.06 in |
| Cable Insulation Outside Diameter Range (metric) | 22.1-26.8 mm |
| Cable Shielding | Concentric Neutral (CN), Jacketed Concentric Neutral (JCN) |
| Conductor Legs Expanded | 2 in |
| Conductor Legs Recovered | 1 in |
| Connector Included | CIR-1/0 |
| Dielectric Strength (V/mil) | 10 kV / mm |
| Flame Retardant | Yes |
| Indoor/Outdoor | Both |
| Inner Diameter After Shrink (Imperial) | 1 in |
| Inner Diameter After Shrink (Metric) | 25.4 mm |
| Inner Diameter Before Shrink (Imperial) | 2 in |
| Inner Diameter Before Shrink (Metric) | 50.8 mm |
| Lug/Stem Connector Included in Kit | No |
| Material | Semi-rigid, Flame Retardant Polyolefin |
| Maximum Operating Temperature (Celsius) | 135 °C |
| Minimum Shrink Temperature (Celsius) | 120 °C |
| Model | Cold-shrink |
| Number of Conductors | 1 |
| Number of Outlets | 3 |
| Operating Temperature (Celsius) | -30 up to +135°C |
| Outer Diameter After Shrink (Imperial) | 2.32 in |
| Outer Diameter After Shrink (Metric) | 58.9 mm |
| Outer Diameter Before Shrink (Imperial) | 4.9 in |
| Outer Diameter Before Shrink (Metric) | 124.5 mm |
| Outlet Style | 3-Way |
| Product Colour | Black |
| Product Series | 5450 Series |
| Product Type | Splice |
| Shrink Type | Heat Shrink |
| Splice Type | Inline Repair |
| Transition Type | 1 - 3 Breakout |
| UV Resistant | Yes |
| Units per Case | 1.0 |
| Voltage | 25 kV, 28 kV |
