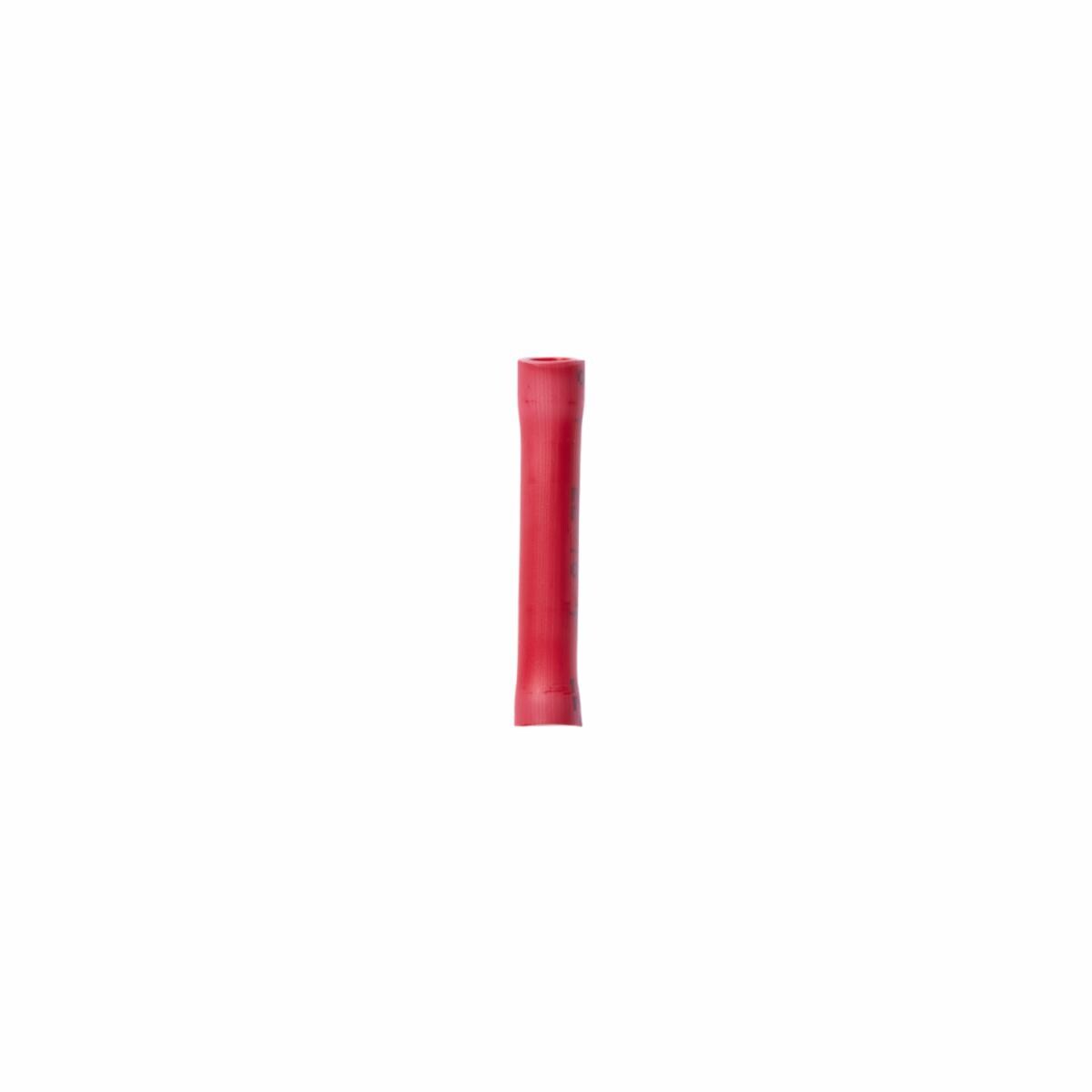

Seamless and vinyl insulated, the 3M™ Scotchlok™ Butt Connector is used to connect two single wires making an in-line splice. Its chamfered barrel ends provide fast easy wire insertion from both ends, and a built in wire stop ensures correct positioning. It must be crimped prior to applying heat to shrink the insulation. This vinyl insulated connector can withstand a maximum temperature of 221 degrees Fahrenheit (105 degrees Celsius). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. 3M™ Scotchlok™ Butt Connectors are UL Recognized, CSA certified, and RoHS 2011/65/EU Compliant.
3M™ Scotchlok™ Butt Connector is colour-coded for quick and easy identification of the wire size required. The connector has a vinyl-insulated, seamless barrel and provides electrical connection to a pre-stripped end of a stranded wire. It has chamfered barrel ends that enable fast, simple wire insertion and allows for correct positioning with built-in wire stop. This product is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Body Material | Copper Alloy |
Brands | Scotchlok™ |
Connector Type | Butt |
Insulation Material | Vinyl |
Maximum Conductor Size (Imperial) | 18 AWG |
Maximum Conductor Size (Metric) | 1 mm² |
Maximum Operating Temperature (Celsius) | 105 °C |
Minimum Conductor Size (Imperial) | 22 AWG |
Minimum Conductor Size (Metric) | .34 mm² |
Product Colour | Red |
Overall Length (Imperial) | 1.02 in |
Overall Length (Metric) | 25.9 mm |
