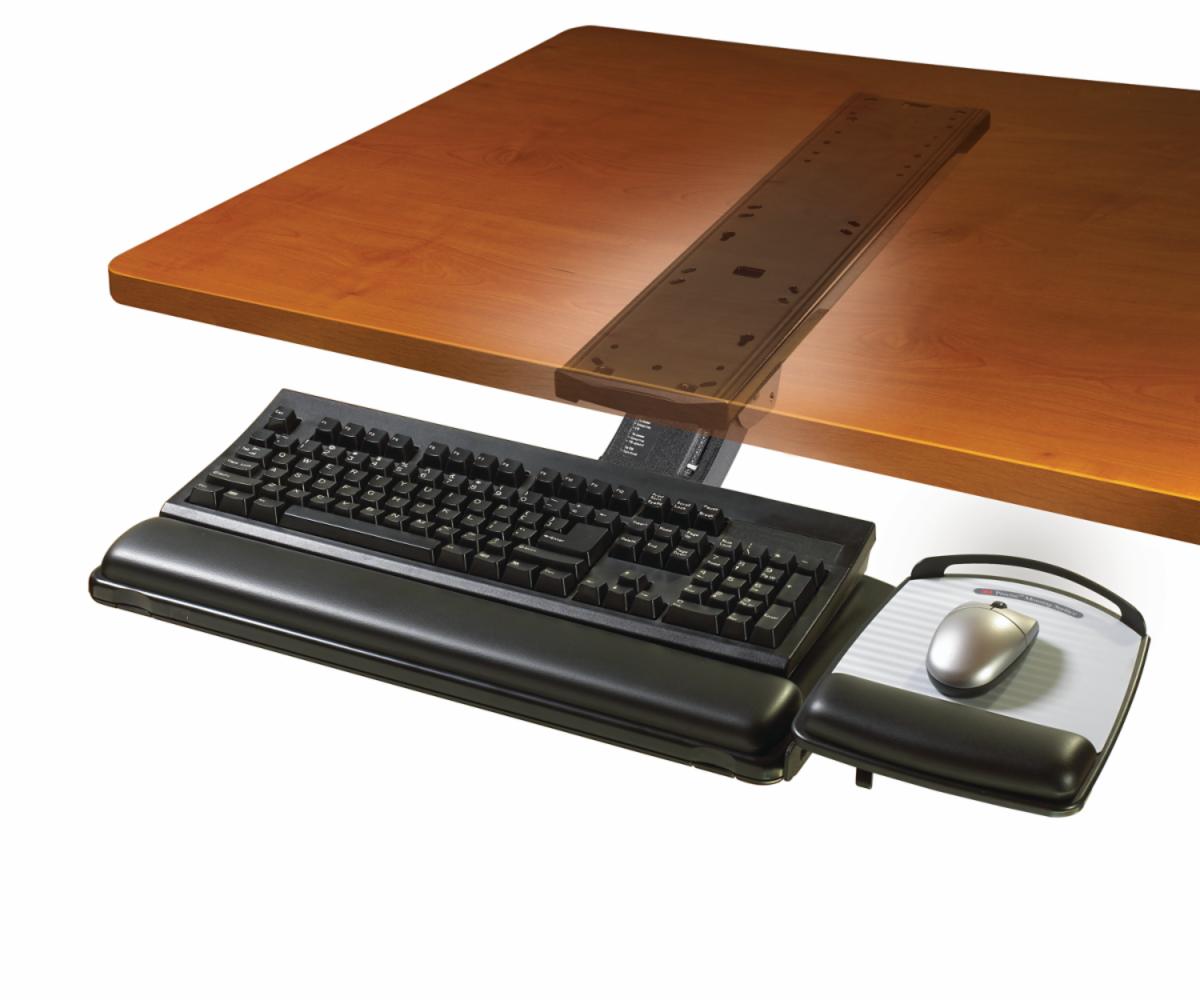

3M™ Sit/Stand Easy Adjust Keyboard Tray AKT180LE, with Adjustable Keyboard and Mouse Platform, 23 in Track

  • 3M ID 7100156036
  • UPC 00051131946712

Lever-free lift and lock adjustment for height

Lateral adjustment of platform for optimal positioning

Highly adjustable mouse platform

View more details

Details

Highlights
  • Lever-free lift and lock adjustment for height
  • Lateral adjustment of platform for optimal positioning
  • Highly adjustable mouse platform
  • Features 3M™ Precise Mousing Surface***
  • Leatherette mouse cover lasts longer and is easier to clean
  • Ideal for corner workstations with less than a 12 inch radius or less than a 17 inch diagonal
  • Not compatible with shallow workstations
  • Lifetime warranty on platform and arm; 1-year warranty on gel wrist rest
  • 25 percent pre-consumer recycled content**

The 3M™ Adjustable Keyboard Tray AKT180LE allows you to easily adjust your keyboard and mouse to your correct ergonomic position and work in comfort. The lever-free lift and lock mechanism on the sit/stand easy-adjust arm enables easy height adjustment and the unique sit/stand feature allows for more variation in work positions, helping to reduce the chance for repetitive stress injuries. It is suitable for corner workstations or straight-on workstations that accept a 23 inch track, and is compatible with most ergonomic keyboards.

The tilt on the 3M™ Sit/Stand Easy Adjust Keyboard Tray is adjusted by dialling the tilt knob to the desired angle. The sturdy platform has proprietary lateral adjustments for positioning the keyboard exactly where needed. The articulating mousing platform adjusts in all directions, tilts forward and back, and can be mounted on the right or left side of the keyboard platform.

Suggested applications
  • Use this product to adjust your keyboard and mouse to the correct ergonomic position

Specifications

Brands

3M™

Corner Mount

Yes

Depth Below Mounting Surface

4 in

Gel-filled Wrist Rests with antimicrobial product protection*

Yes

Height Above Mounting Surface

10 none

Height Above/Below Mounting Surface

+10" / - 5"

Height Adjustment Mechanism

Easy-Adjust

Height Indicator

Yes

Meets BIFMA Specifications

Yes (x 5.5-2014)

Meets BIFMA Specifications (x 5.5-1998)

Yes

Minimum / Maximum Width of Keyboard and Mousing Platforms

23.5" / 26.5"

Package Configurations

1/Pack

Platform Depth

10.625 none

Platform Width

19.5 none

Product Pre-Consumer Waste %

25

Product Type

Sit/Stand Easy Adjust Arm

Product contains recycled materials

Yes

Required Depth Under Mounting Surface

23.25"

Required Minimum Length for Diagonal Corner

17 none

Required Minimum Radius for Curved Corner

12 none

Required Width Under Mounting Surface

24"

Right or Left Mount Mousing Surface

Yes

Sit Stand

Yes

Size

Adjustable

Stows Completely Under Mounting Surface

Yes

Suitable for Corner Workstations

Yes

Swivel

360 °

Tilt Adjustment Range

+10º / -15º

Tilt Indicator

Yes

Tilt Range

+15° / - 15°

Tool Free Installation

No

Track Length

23 none

Overall Width (Imperial)

23 in

Overall Width (Metric)

584.2 mm

Resources

Article Information Sheet

Document Number: MSDS_2514057_CA_EN_AIS

(PDF)

* Antimicrobial product protection: Gel-filled wrist rests with antimicrobial protection inhibits the growth of microorganisms, such as bacteria, on the product surface, that can cause stains, odours and product degradation.
