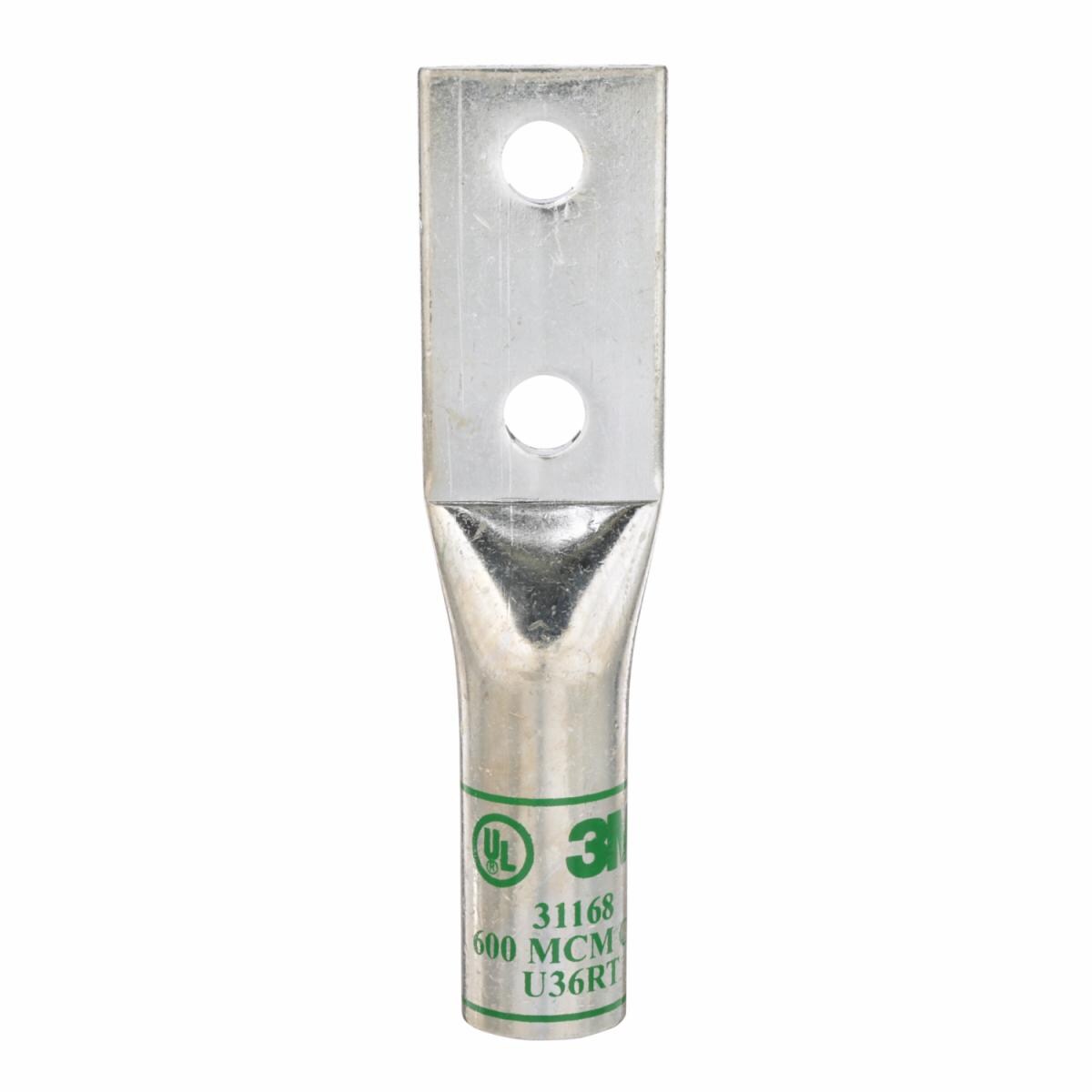

3M™ Scotchlok™ Copper Two Hole Long Barrel Lug, 31168, up to 35 kV, 600 kcmil, green
- 3M ID 7000031447
- UPC 00054007119814
Details
Highlights
- Simple installation using readily available tools
- Contact aid provided in the lug barrel is compatible with poly/EPR insulations
- Colour coded for easy identification
- Electro-tin plated to resist electrolytic corrosion
- Chamfered ends ensure ease of wire insertion
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Copper Two Hole Long Barrel Lug 31168 has a 1/2 inch stud size, a 0.923 inch (23,44 mm) I.D., and a 6.720 inch (170.6 mm) length. One piece seamless design.
Suggested applications
- For use on copper conductors only
- For indoor or outdoor use
- For low and medium voltage up to 35 kV
Typical Properties
| Barrel Length (Imperial) | 2.62 in |
| Barrel Length (metric) | 66.5 mm |
| Barrel Style | Long Barrel |
| Brands | Scotchlok™ |
| Case Quantity | 6 |
| Centre of Hole to Centre of Hole | 1.75 Inch |
| Centre of Hole to Centre of Hole (Metric) | 44.5 mm |
| Centre of Hole to End of Pad | 0.63 Inch |
| Centre of Hole to End of Pad (Metric) | 16.0 mm |
| Compatible Conductor Size (Imperial) | 600 kcmil |
| Compatible Conductor Size (Metric) | 300 mm² |
| Connector Description | Two hole |
| For Use With | Copper Conductor Only |
| Inside Diameter (Imperial) | 0.92 in |
| Inside Diameter (metric) | 23.4 mm |
| Material | Copper |
| Maximum Conductor Size (Imperial) | 600 kcmil |
| Maximum Conductor Size (Metric) | 300 mm² |
| Maximum Operating Voltage | 35 Kilovolt |
| Number of Stud Holes | 2 |
| Outer Diameter (Imperial) | 1.18 in |
| Pad Length (Imperial) | 3 in |
| Pad Length (metric) | 76.2 mm |
| Pad Width | 1.69 in |
| Pad Width (metric) | 42.9 mm |
| Product Colour | Green |
| Product Series | 31000 |
| Stud Sizes | 1/2 Inch |
| Units per Case | 6.0 |
| Overall Length (Imperial) | 6.72 in |
| Overall Length (Metric) | 170.6 mm |
