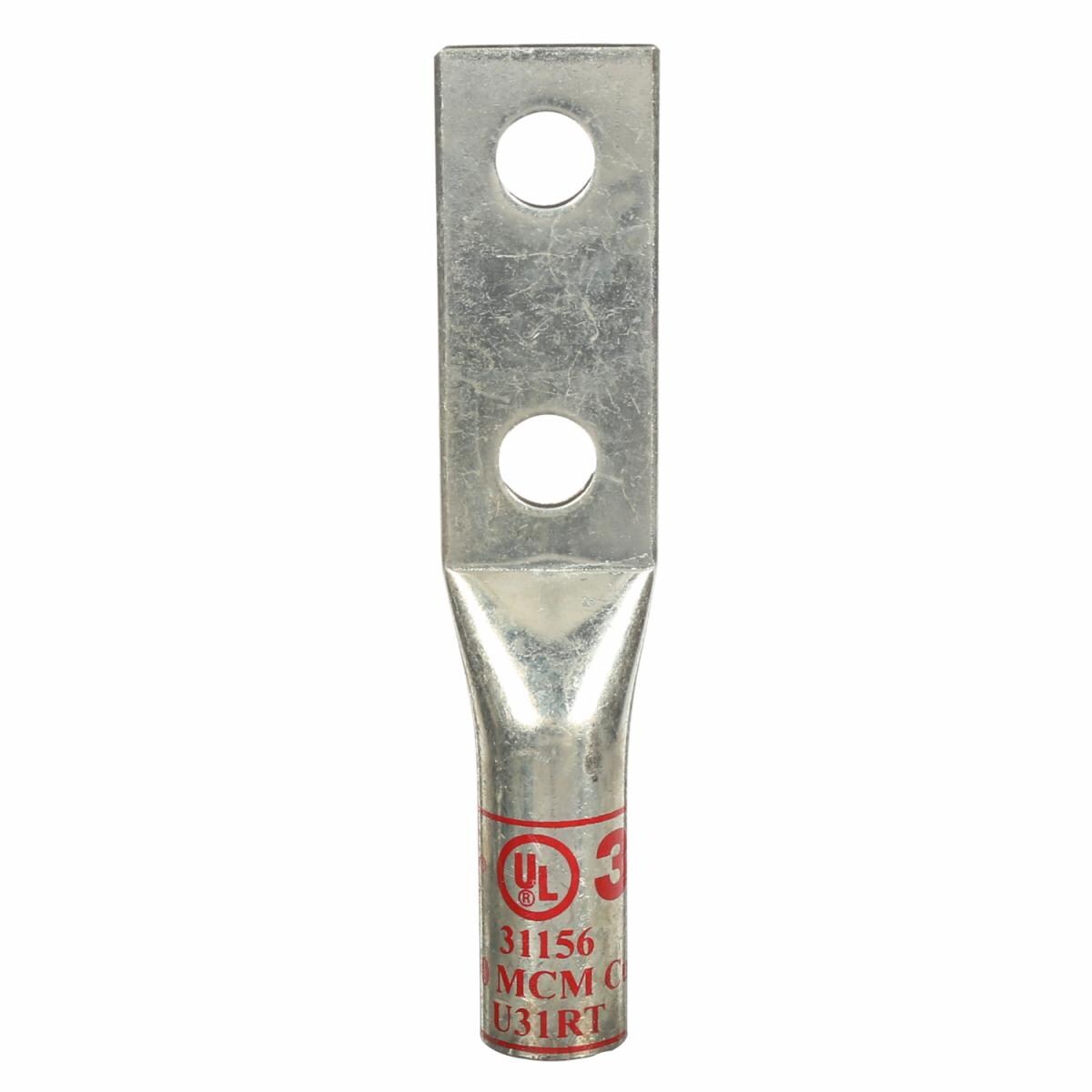

3M™ Scotchlok™ Copper Two Hole Long Barrel Lug, 31156, up to 35 kV, 350 kcmil, red
- 3M ID 7000031409
- UPC 00054007126676
Details
Highlights
- Simple installation using readily available tools
- Contact aid provided in the lug barrel is compatible with poly/EPR insulations
- Colour coded for easy identification
- Electro-tin plated to resist electrolytic corrosion
- Chamfered ends ensure ease of wire insertion
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Copper Two Hole Long Barrel Lug 31156 has a 1/2 inch stud size, a 0.700 inch (17.8 mm) I.D., and a 5.750 inch (146.0 mm) length. One piece seamless design.
Suggested applications
- For use on copper conductors only
- For indoor or outdoor use
- For low and medium voltage up to 35 kV
Typical Properties
| Barrel Length (Imperial) | 1.94 in |
| Barrel Length (metric) | 49.2 mm |
| Barrel Style | Long Barrel |
| Brands | Scotchlok™ |
| Case Quantity | 10 |
| Centre of Hole to Centre of Hole | 1.75 Inch |
| Centre of Hole to Centre of Hole (Metric) | 44.5 mm |
| Centre of Hole to End of Pad | 0.63 Inch |
| Centre of Hole to End of Pad (Metric) | 16.0 mm |
| Compatible Conductor Size (Imperial) | 350 kcmil |
| Compatible Conductor Size (Metric) | 185 mm² |
| Connector Description | Two hole |
| For Use With | Copper Conductor Only |
| Inside Diameter (Imperial) | 0.7 in |
| Inside Diameter (metric) | 17.8 mm |
| Material | Copper |
| Maximum Conductor Size (Imperial) | 350 kcmil |
| Maximum Operating Voltage | 35 Kilovolt |
| Number of Stud Holes | 2 |
| Outer Diameter (Imperial) | 0.87 in |
| Pad Length (Imperial) | 3 in |
| Pad Length (metric) | 76.2 mm |
| Pad Width | 1.31 in |
| Pad Width (metric) | 33.4 mm |
| Product Colour | Red |
| Product Series | 31000 |
| Stud Sizes | 1/2 Inch |
| Units per Case | 10.0 |
| Overall Length (Imperial) | 5.75 in |
| Overall Length (Metric) | 146.1 mm |
