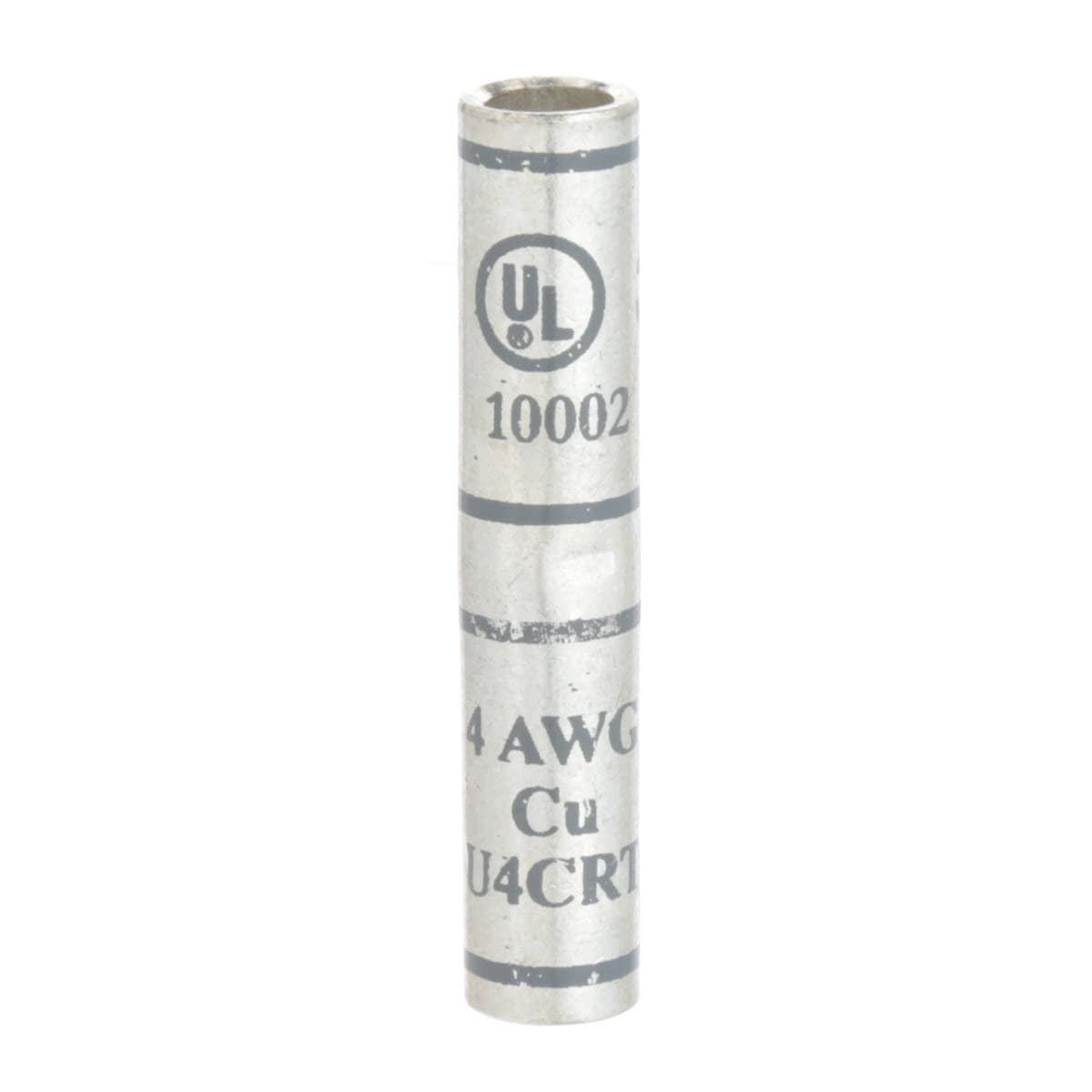

3M™ Scotchlok™ Copper Standard Barrel Connector, 10002, up to 35 kV, 4 AWG str., grey
- 3M ID 7000031369
- UPC 00054007127253
Details
Highlights
- Simple installation using readily available tools
- Manufactured using tin-plated copper
- Colour coded for easy identification
- Integral centre cable stop
3M™ Scotchlok™ Copper Standard Barrel Connector 10002 has a length of 1.75 in (44,4 mm), and a 0.247 in (6,2 mm) I.D.
Suggested applications
- Intended for use on is used on copper conductors only
- For indoor and outdoor use
- For low and medium voltage up to 35 kV
Typical Properties
| Barrel Length (Imperial) | 0 NP |
| Brands | Scotchlok™ |
| Compatible Conductor Size (Imperial) | 4 AWG |
| Compatible Conductor Size (Metric) | 25 mm² |
| Material | Copper |
| Maximum Conductor Size (Imperial) | 4 AWG |
| Overall Length (Imperial) | 1.75 in |
| Overall Length (Metric) | 44.4 mm |
