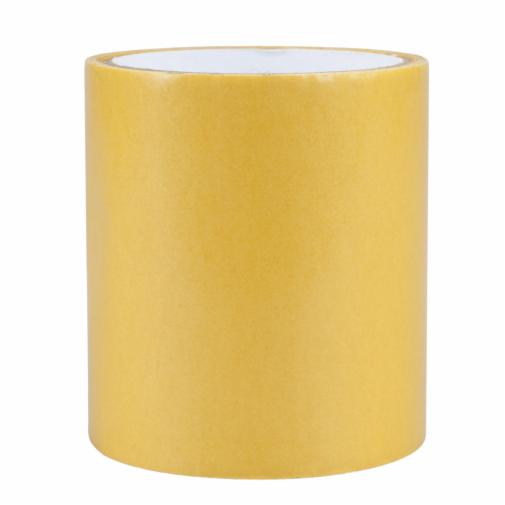

The 3M™ Scrim Reinforced Adhesive Transfer Tape 97053 is a micro scrim reinforced 2.5 mil (0.06 mm) thick acrylic adhesive transfer tape specifically designed for difficult bonding applications.
The 3M™ Scrim Reinforced Adhesive Transfer Tape 97053 features a 50 lb (22.68 kg) glassine liner and has excellent quick-stick for permanent bond applications on plastics, metals, nonwovens, felts, foams (including polyurethane), polyether, polyester, neoprene, polyethylene, and EPDM.
Adhesive Type | Acrylic |
Applications | Bonding, Gasket Assembly, Large Surface Lamination Assembly, Mounting & Trim Attachment, Small Joint Assembly |
Automotive OEM Specification | FCA 9.55368, GMW 14892, Ford WSS-M99P48-A3 |
Brands | 3M™ |
Indoor/Outdoor | Indoor/Outdoor |
Maximum Operating Temperature (Celsius) | 79 °C |
Maximum Operating Temperature (Fahrenheit) | 175 null |
Minimum Operating Temperature (Celsius) | -40 °C |
Minimum Operating Temperature (Fahrenheit) | -40 null |
Primary Liner | Glassine Paper |
Smallest Saleable Unit | Roll |
Total Tape Thickness without Liner (Imperial) | 2.5 Milli-inch (mil) |
Total Tape Thickness without Liner (metric) | 0.064 mm |
Units per Case | 1.0 Roll |
Overall Length (Imperial) | 250 yd |
Overall Length (Metric) | 228.6 m |
Overall Width (Imperial) | 54 in, 60 in, 62 in |
Overall Width (Metric) | 1371.6 mm, 1524 mm, 1574.8 mm |
