3M™ Adhesive Transfer Tape
- | Select product options for IDs.
Details
Highlights
- Adhesive provides excellent holding power and anti-lifting properties
- Excellent bond to low surface energy substrates including powder coatings and plastics such as polypropylene (PP)
- High adhesion to metals and high surface energy materials, making it suitable for bonding dissimilar substrates

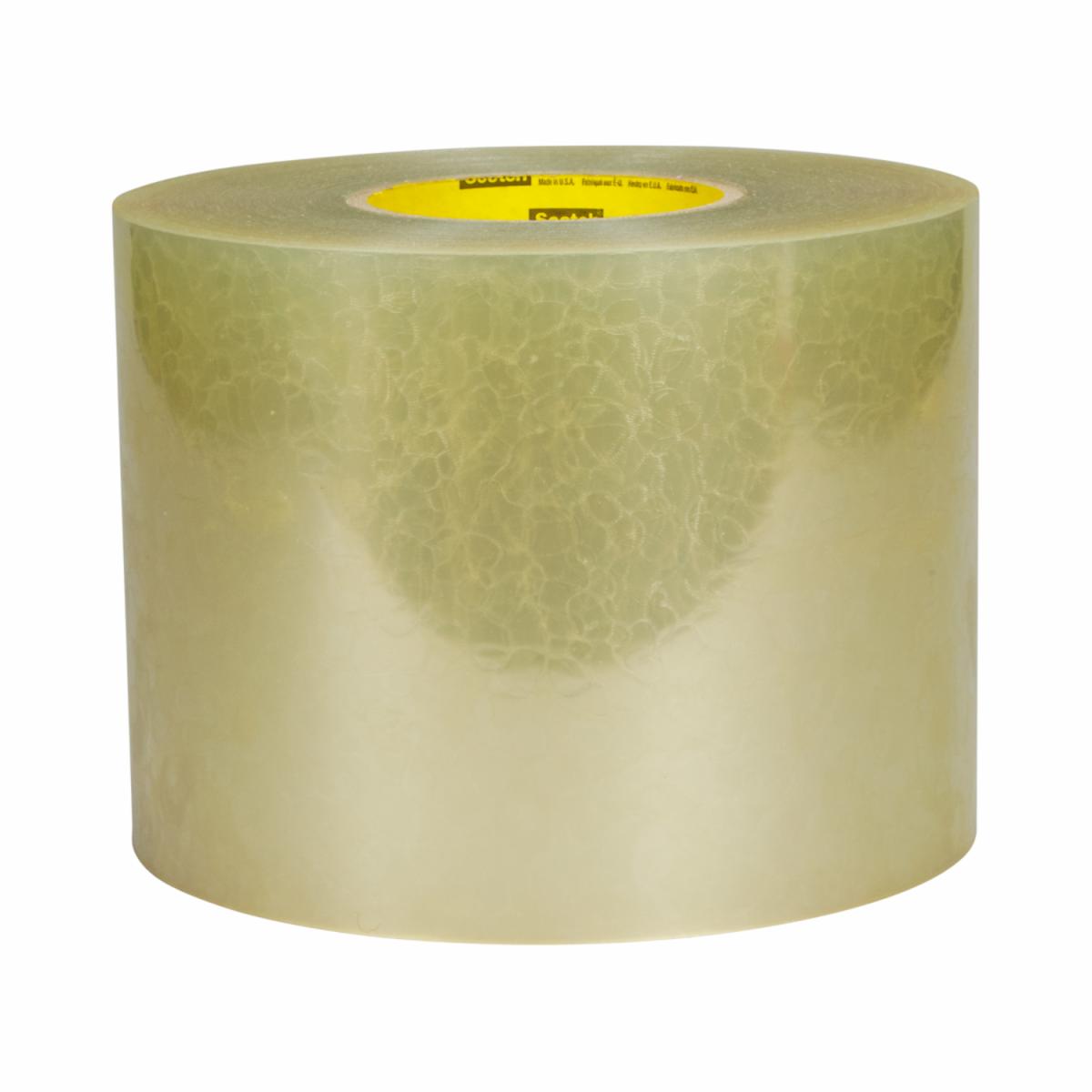

The 3M™ Adhesive Transfer Tape 9472FL is a versatile, 5 mil (0.13 mm) transfer tape on a release liner. Featuring 3M™ acrylic adhesive 300LSE , this tape is capable of reliably bonding a wide variety of similar and dissimilar materials such as metals, most plastics, glass, papers, and painted surfaces.
This tape is supplied on a film liner ideal for rotary die-cutting applications. It offers good chemical, humidity, and moisture resistance, as well as performance across a wide temperature range (from -40°F/-40°C to 300°F/148°C).
Suggested applications
- Bonding rough substrates such as textured plastics
- Plastic to metal bonding
- Consumer electronic device assemblies such as phones, tablets, and wearable devices
Typical Properties
| Adhesive Type | Acrylic |
| Applications | Bonding, Gasket Assembly, Large Surface Lamination Assembly, Small Joint Assembly |
| Brands | 3M™ |
| Indoor/Outdoor | Indoor/Outdoor |
| Industries | Metalworking, Specialty Vehicle, MRO, Transportation, Electronics, Oil & Gas, Medical, Automotive, Converter Solutions, General Industrial, Woodworking, Signage, Appliance, Military and Government |
| Maximum Operating Temperature (Celsius) | 149 °C |
| Maximum Operating Temperature (Fahrenheit) | 300 null |
| Minimum Operating Temperature (Celsius) | -40 °C |
| Minimum Operating Temperature (Fahrenheit) | -40 null |
| Primary Liner | PET |
| Primary Liner Colour | Transparent |
| Primary Liner Thickness (Imperial) | 2 Milli-inch (mil) |
| Primary Liner Thickness (Metric) | 0.05 mm |
| Smallest Saleable Unit | Roll |
| Total Tape Thickness without Liner (Imperial) | 5 Milli-inch (mil), 5.2 Milli-inch (mil) |
| Total Tape Thickness without Liner (metric) | 0.127 mm, 0.13 mm |
| Units per Case | 1.0 Roll |
| Overall Length (Imperial) | 60 yd, 180 yd |
| Overall Length (Metric) | 55 m, 164.59 m |
| Overall Width (Imperial) | 54 in |
| Overall Width (Metric) | 137.2 mm, 1372 cm |
