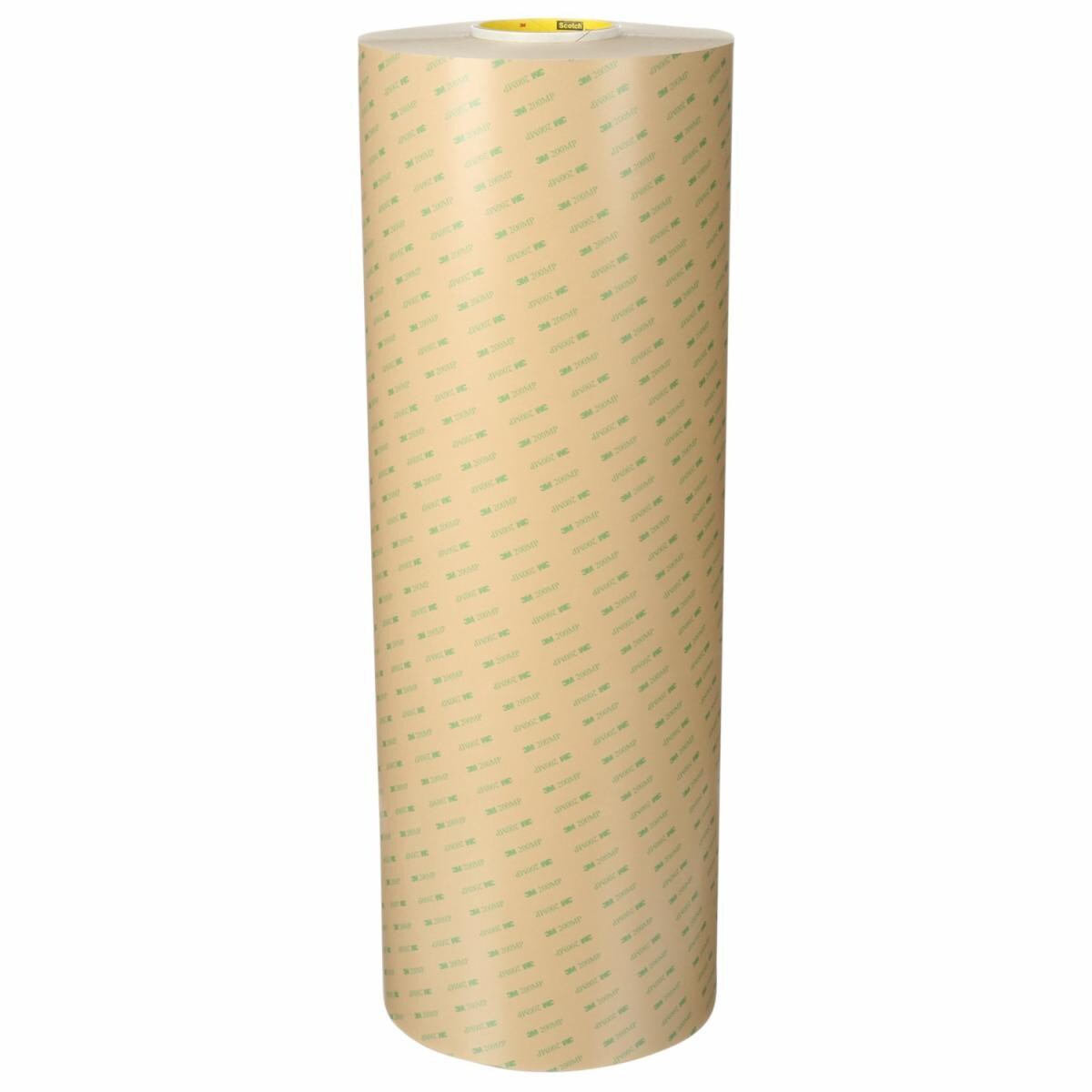

3M™ Adhesive Transfer Tape 9667MP

  • Options available
  • | Select product options for IDs.

Performs well after exposure to humidity and hot/cold cycles

Good UV and chemical resistance

Quick flowing to speed lamination of textured plastics, foams, fabrics, and coated papers

View more details
icn_down_arrow
icn_down_arrow

Details

Highlights
  • Performs well after exposure to humidity and hot/cold cycles
  • Good UV and chemical resistance
  • Quick flowing to speed lamination of textured plastics, foams, fabrics, and coated papers
  • Excellent high temperature performance, as well as excellent shear strength that minimizes edge lifting and slippage of parts
  • PCK liner

The 3M™ Adhesive Transfer Tape 9667MP is a 3M™ High Performance Acrylic Adhesive 200MP on a 6.2 mil (0.16 mm), tan, 83 lb (37.65 kg) poly-coated kraft paper (PCK) liner.

This product features excellent high temperature performance, shear strength, and resistance to harsh environments. It provides stability when processing thin graphic materials. The 3M™ High Performance Acrylic Adhesive 200MP is a popular choice for graphic attachment and general industrial joining applications.

Suggested applications
  • Metal nameplates and rating plates
  • Flexible circuits
  • Graphic overlays for membrane switches

Typical Properties

Adhesive Type

Acrylic

Applications

Gasket Assembly, Large Surface Lamination Assembly, Mounting & Trim Attachment, Small Joint Assembly, Bonding

Brands

3M™

Indoor/Outdoor

Indoor/Outdoor

Industries

MRO, Military and Government, Electronics, Medical, Signage, Specialty Vehicle, Woodworking, Point of Purchase, Appliance, Converter Solutions, Print, Transportation, Aerospace, Automotive, General Industrial, Metalworking

Maximum Operating Temperature (Celsius)

204 °C

Maximum Operating Temperature (Fahrenheit)

400 null

Minimum Operating Temperature (Celsius)

-40 °C

Minimum Operating Temperature (Fahrenheit)

-40 null

Primary Liner

83# Polycoated Kraft Paper

Primary Liner Colour

Tan

Primary Liner Thickness (Imperial)

6.2 Milli-inch (mil)

Primary Liner Thickness (Metric)

0.16 mm

Shelf Life

18 mo

Smallest Saleable Unit

Roll

Total Tape Thickness without Liner (Imperial)

2.3 Milli-inch (mil)

Total Tape Thickness without Liner (metric)

0.058 mm

Units per Case

1.0 Roll

Overall Length (Imperial)

180 yd

Overall Length (Metric)

164.59 m

Overall Width (Imperial)

12 in, 24 in

Overall Width (Metric)

304.8 mm, 609.6 mm
